20XXHR500, Timing Pulley

20XXHR500 - Cast Iron Imperial Pitch Pulleys

20XXHR500

Click to Enlarge

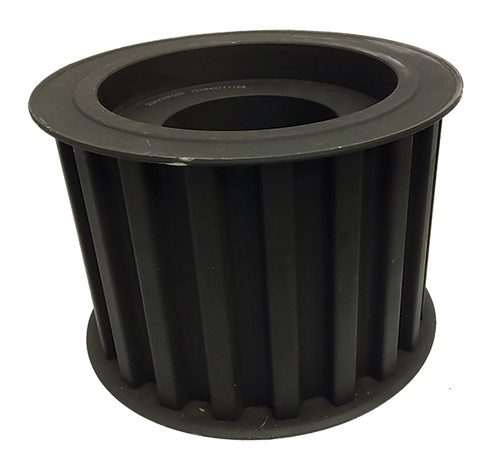

20XXHR500, Timing Pulley, Cast Iron

Learn more about 20XXHR500 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 20XXHR500
Teeth 20
Tooth Style XXH
For Belt Width (in) 5.0000
Type 11
Material Cast Iron
Flange Material Steel
Bore Type Split Taper
Bore Description Bored for R2 Bushing
Pitch Diameter (in) 7.958
Outside Diameter (in) 7.838
Flange Diameter (in) 8.688
Face Width (in) 5.813
Overall Length (in) 6.094
Min. Bore (in) 1.375
Unit System Inch
Bushing R2
P.D. (mm) 202.00
O.D. (mm) 199.10
MOQ 1
Weight (lb) 44.34
Part Number Cross Reference 20XXHR500, 20XXHR500, 20XXHR500
