21-2P03-6CA3, Timing Pulley

21-2P03-6CA3 - Aluminum Powerhouse® Pulleys

21-2P03-6CA3

Click to Enlarge

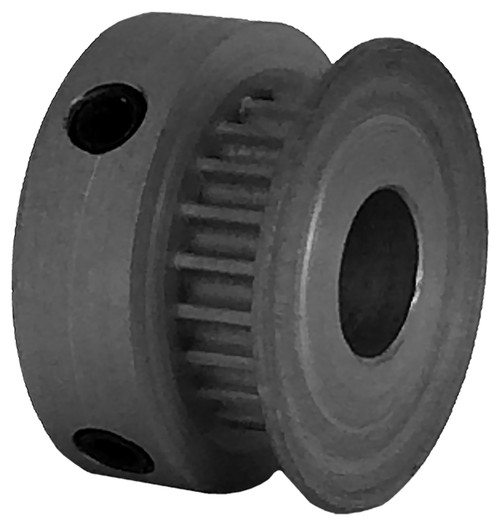

21-2P03-6CA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 21-2P03-6CA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 21-2P03-6CA3
Teeth 21
Tooth Style 2P
For Belt Width (mm) 3.00
Type 6C
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 0.250
Bore Description 1/4 Inch Finished Bore
Pitch Diameter (in) 0.526
Outside Diameter (in) 0.506
Flange Diameter (in) 0.710
Face Width (in) 0.204
Overall Length (in) 0.438
Hub Diameter (in) 0.710
Min. Bore (in) 0.25
Pulley Belt Width (in) 0.160
Unit System Inch
P.D. (mm) 13.00
O.D. (mm) 12.90
MOQ 1
Weight (lb) 0.01
Part Number Cross Reference A 6A51-021DF0308, A6A51-021DF0308, 21-2GT06-1A X 1/4, 21-2P03-6CA3, 21-2P03-6CA3
Set Screw Quantity 2
