21-3P15-6FA2, Timing Pulley

21-3P15-6FA2 - Aluminum Powerhouse® Pulleys

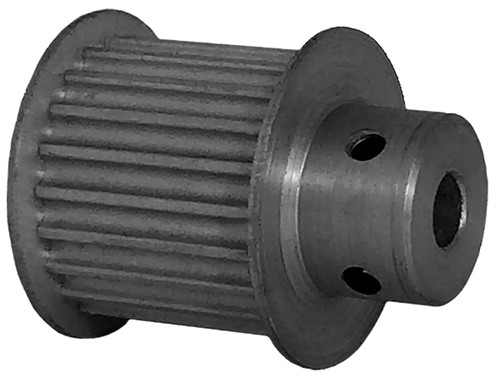

21-3P15-6FA2

Click to Enlarge

21-3P15-6FA2, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 21-3P15-6FA2 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 21-3P15-6FA2
Teeth 21
Tooth Style 3P
For Belt Width (mm) 15
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore Description 3/16 Inch Finished Bore
Pitch Diameter (in) 0.790
Outside Diameter (in) 0.760
Flange Diameter (in) 0.895
Face Width (in) 0.742
Overall Length (in) 1.057
Hub Diameter (in) 0.500
Min. Bore (in) 0.1875
Pulley Belt Width (in) 0.636
Unit System Inch
P.D. (mm) 20.00
O.D. (mm) 19.30
MOQ 1
Weight (lb) 0.03
Part Number Cross Reference 21-3P15-6FA2
Set Screw Quantity 2
