21H100-6FS8 Imperial Pitch Pulleys

21H100-6FS8, 21HB100, 1143

Product Details for 21H100-6FS8

Comparable to: 21H100-6FS8, 21HB100, 1143

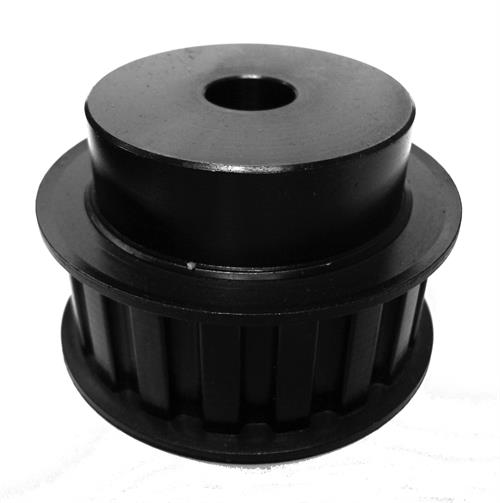

21H100-6FS8, Timing Pulley, Powerhouse Timing, 3/4 Inch Bore, Cast Iron

Specifications

Product Number 21H100-6FS8
Teeth 21
Tooth Style H
For Belt Width (in) 1.000
Type 6F
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 3/4 Inch Minimum Plain Bore
Pitch Diameter (in) 3.342
Outside Diameter (in) 3.288
Flange Diameter (in) 3.574
Face Width (in) 1.312
Overall Length (in) 2.125
Hub Diameter (in) 2.625
Min. Bore (in) 0.75
Pulley Belt Width (in) 1.062
Unit System Inch
Max. Bore (in) 2.375
Weight (lb) 4.40
Part Number Cross Reference 21H100-6FS8, 21HB100, 1143
