21L075-6FA6, Timing Pulley

21L075-6FA6 - Aluminum Imperial Pitch Pulleys

21L075-6FA6

Click to Enlarge

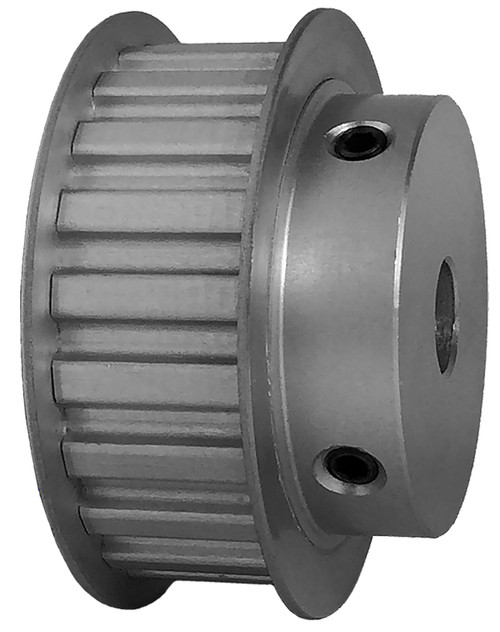

21L075-6FA6, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 21L075-6FA6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 21L075-6FA6
Teeth 21
Tooth Style L
For Belt Width (in) 0.7500
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/2 Inch Finished Bore
Pitch Diameter (in) 2.507
Outside Diameter (in) 2.477
Flange Diameter (in) 2.750
Face Width (in) 1.000
Overall Length (in) 1.500
Hub Diameter (in) 2.000
Min. Bore (in) 0.500
Unit System Inch
P.D. (mm) 64.00
O.D. (mm) 62.90
MOQ 1
Weight (lb) 0.61
Part Number Cross Reference 21L075, 21L075MPB, 21L075, 86237902, M21L075, 21L075-6FA6
Set Screw Quantity 2
