21L100-6FS7 Imperial Pitch Pulleys

21L100-6FS7, PB21L100, 78230756, 21LB100, 21L100-5/8 MPB, 20181962, 114327, 21L1

Product Details for 21L100-6FS7

Comparable to: 21L100-6FS7, PB21L100, 78230756, 21LB100, 21L100-5/8 MPB, 20181962, 114327, 21L1

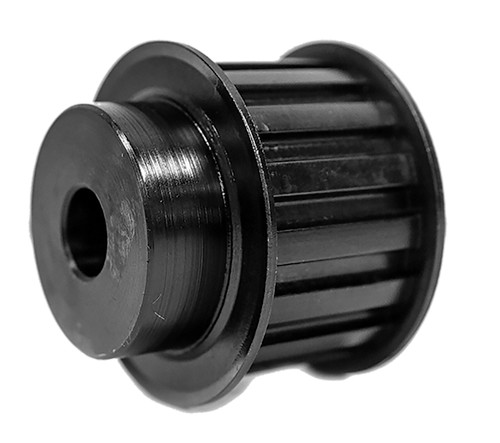

21L100-6FS7, Timing Pulley, Powerhouse Timing, 5/8 Inch Bore, Steel

Specifications

Product Number 21L100-6FS7
Teeth 21
Tooth Style L
For Belt Width (in) 1.000
Type 6F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 5/8 Inch Minimum Plain Bore
Pitch Diameter (in) 2.507
Outside Diameter (in) 2.477
Flange Diameter (in) 2.750
Face Width (in) 1.250
Overall Length (in) 1.750
Hub Diameter (in) 2.000
Min. Bore (in) 0.625
Pulley Belt Width (in) 1.070
Unit System Inch
Max. Bore (in) 1.75
Weight (lb) 1.80
Part Number Cross Reference 21L100-6FS7, PB21L100, 78230756, 21LB100, 21L100-5/8 MPB, 20181962, 114327, 21L1
