21MP025M6CA6 Metric Pulleys

21MP025M6CA6, A 6A16M021DF6006, A6A16M021DF6006

Product Details for 21MP025M6CA6

Comparable to: 21MP025M6CA6, A 6A16M021DF6006, A6A16M021DF6006

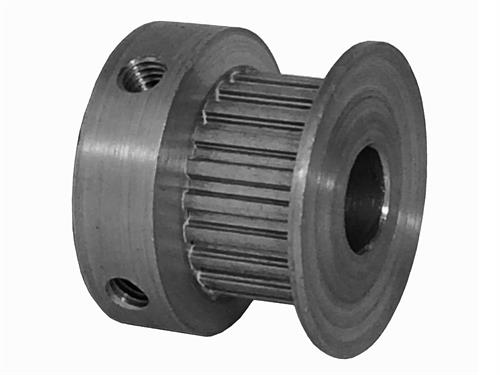

21MP025M6CA6, Timing Pulley, Powerhouse Timing, 6 mm Bore, Aluminum

Specifications

Product Number 21MP025M6CA6
Teeth 21
Tooth Style MXL
For Belt Width (in) 0.250
Type 6C
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (mm) 6.00
Face Width (in) 0.337
Set Screw 2 x M3 @ 90°
Pulley Belt Width (mm) 7.20
Unit System Metric
P.D. (mm) 13.60
O.D. (mm) 13.10
Flange Diameter (mm) 18.00
Overall Length (mm) 14.30
Hub Diameter (mm) 18.00
Weight (lb) 0.02
Part Number Cross Reference 21MP025M6CA6, A 6A16M021DF6006, A6A16M021DF6006
