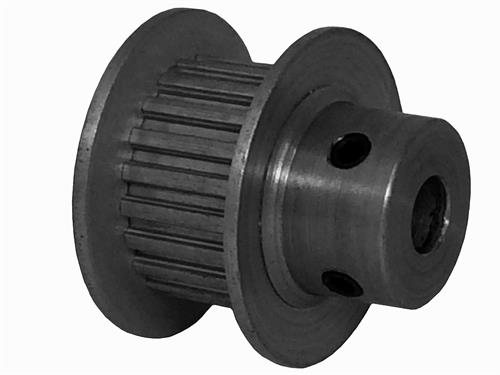

21MP025M6FA4, Timing Pulley

21MP025M6FA4 - Aluminum Metric Pulleys

Product Details for 21MP025M6FA4

Comparable to: 21MP025M6FA4, A 6A16M021DF6004, A6A16M021DF6004

21MP025M6FA4, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 21MP025M6FA4 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 21MP025M6FA4
Teeth 21
Tooth Style MXL
For Belt Width (in) 0.250
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (mm) 4.00
Face Width (in) 0.389
Set Screw 2 x M2.5 @ 90°
Pulley Belt Width (mm) 7.20
Unit System Metric
P.D. (mm) 13.60
O.D. (mm) 13.10
Flange Diameter (mm) 18.00
Face Width (mm) 9.90
Overall Length (mm) 15.90
Hub Diameter (mm) 9.90
Weight (lb) 0.01
Part Number Cross Reference 21MP025M6FA4, A 6A16M021DF6004, A6A16M021DF6004
