21T5/18-2, Timing Pulley

21T5/18-2 - Aluminum Metric Pulleys

21T5/18-2

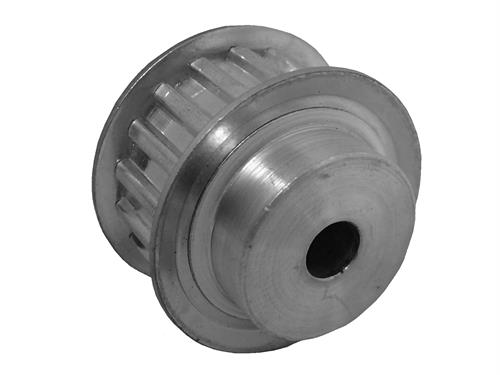

Click to Enlarge

21T5/18-2, Timing Pulley, Aluminum

Learn more about 21T5/18-2 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 21T5/18-2
Teeth 18
Tooth Style T5mm
For Belt Width (mm) 10.00
Type 6F
Material Aluminum
Flange Material Steel
Bore Type Minimum Plain Bore
Bore Description 6 mm Minimum Plain Bore
Bore (mm) 6.00
Pitch Diameter (in) 1.128
Outside Diameter (in) 1.093
Pulley Belt Width (mm) 10.00
Unit System Metric
P.D. (mm) 29.00
O.D. (mm) 27.80
Flange Diameter (mm) 32.00
Face Width (mm) 15.00
Overall Length (mm) 21.00
Hub Diameter (mm) 20.00
MOQ 1
Weight (lb) 0.07
Part Number Cross Reference LS21T5/18-2, 21T5/18 2, 21T5/18-2, 21T5/18-2, 21T5/18-2
