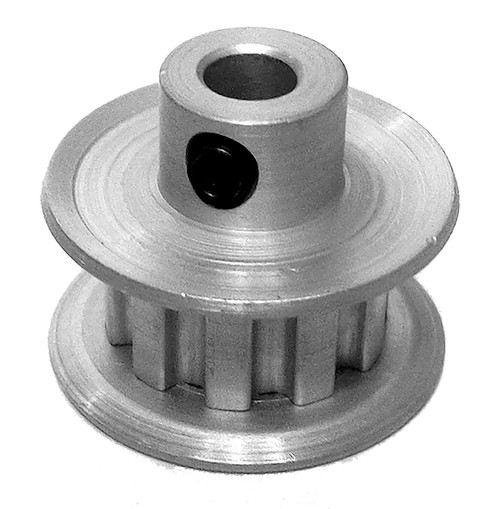

21XL025-6FA3, Timing Pulley

21XL025-6FA3

Click to Enlarge

21XL025-6FA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 21XL025-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	21XL025-6FA3
Teeth	21
Tooth Style	XL
For Belt Width (in)	0.2500
Type	6F
Material	Aluminum
Finish	Clear Anodized
Flange Material	Aluminum
Bore Type	Finished Bore
Bore (in)	0.250
Bore Description	1/4 Inch Finished Bore
Pitch Diameter (in)	1.337
Outside Diameter (in)	1.317
Flange Diameter (in)	1.563
Face Width (in)	0.438
Overall Length (in)	0.750
Hub Diameter (in)	1.000
Min. Bore (in)	0.25
Pulley Belt Width (in)	0.310
Unit System	Inch
P.D. (mm)	34.00
O.D. (mm)	33.40
MOQ	1
Weight (lb)	0.09
Part Number Cross Reference	A 6A3-21DF02508, A6A3-21DF02508, PB21XL025, 21XL025 X 1/4 6F, PT021D08L04T, TP20A4W4-21, 21XL025-1A X 1/4, 21XL025-6FA3, 21XL025-6FA3
Set Screw Quantity	2
