22-2P09-6FA2, Timing Pulley

22-2P09-6FA2 - Aluminum Powerhouse® Pulleys

22-2P09-6FA2

Click to Enlarge

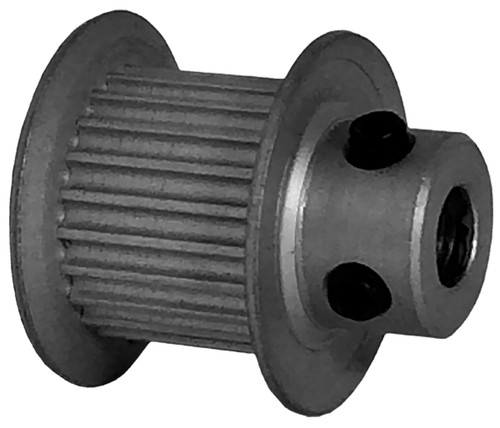

22-2P09-6FA2, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 22-2P09-6FA2 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 22-2P09-6FA2
Teeth 22
Tooth Style 2P
For Belt Width (mm) 9.00
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 0.188
Bore Description 3/16 Inch Finished Bore
Pitch Diameter (in) 0.551
Outside Diameter (in) 0.531
Flange Diameter (in) 0.740
Face Width (in) 0.514
Overall Length (in) 0.750
Hub Diameter (in) 0.390
Min. Bore (in) 0.1875
Pulley Belt Width (in) 0.410
Unit System Inch
Belt Width (mm) 10.40
P.D. (mm) 14.00
O.D. (mm) 13.50
Flange Diameter (mm) 18.80
Face Width (mm) 13.10
Overall Length (mm) 19.10
Hub Diameter (mm) 9.90
MOQ 1
Weight (lb) 0.01
Part Number Cross Reference A 6A51-022DF0906, A6A51-022DF0906, 2MR-22S-09, 2MR-22S-09, TP2A3W9-22, 22-2GT06-1A X 3/16, 22-2P09-6FA2, 22-2P09-6FA2
Set Screw Quantity 2

Comparable to: A 6A51-022DF0906, A6A51-022DF0906, 2MR-22S-09, 2MR-22S-09, TP2A3W9-22, 22-2GT06-1A X 3/16, 22-2P09-6FA2, 22-2P09-6FA2
