22-8M-PS10S, Timing Pulley Stock

22-8M-PS10S, 22-8M-PS-10S

Product Details for 22-8M-PS10S

Comparable to: 22-8M-PS10S, 22-8M-PS-1

Click to Enlarge

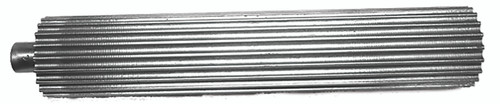

22-8M-PS10S, Timing Pulley Stock, Steel

Learn more about 22-8M-PS10S Timing Pulley Stocks and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 22-8M-PS10S
Teeth 22
Tooth Style HTD 8mm
Material Steel
Pitch Diameter (in) 2.206
Outside Diameter (in) 2.152
Overall Length (in) 11.000
Unit System Inch
Min. Usable Length (in) 10.000
P.D. (mm) 56.00
O.D. (mm) 54.70
Weight (lb) 9.25
Part Number Cross Reference 22-8M-PS10S, 22-8M-PS-1
