22-8MX21-1008, Timing Pulley

22-8MX21-1008 - Steel Powerhouse® MX Pulleys

22-8MX21-1008

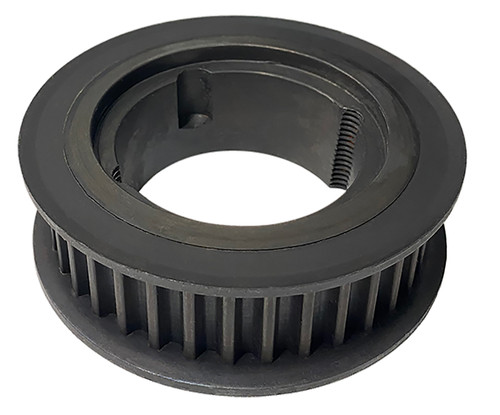

Click to Enlarge

22-8MX21-1008, Timing Pulley, Steel, Black Oxide,

Learn more about 22-8MX21-1008 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 22-8MX21-1008
Teeth 22
Tooth Style 8MX
For Belt Width (mm) 21.00
Type A1F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore Description Bored for 1008 Bushing
Pitch Diameter (in) 2.206
Outside Diameter (in) 2.143
Flange Diameter (in) 2.559
Face Width (in) 1.203
Overall Length (in) 1.203
Min. Bore (in) 0.5
Pulley Belt Width (in) 0.960
Unit System Inch
Bushing 1008
P.D. (mm) 56.00
O.D. (mm) 54.40
MOQ 1
Weight (lb) 0.63
Part Number Cross Reference 8MX-22S-21, B8MCS-22-21, 22G-8M-21-1008, 20296043, 8MX-22S-21-1008 HT500 SPKT, 8MPC22S21, 7970K15, 22-8MX21-1008, 481915, 22-8MX21-1008

Comparable to: 8MX-22S-21, B8MCS-22-21, 22G-8M-21-1008, 20296043, 8MX-22S-21-1008 HT500 SPKT, 8MPC22S21, 7970K15, 22-8MX21-1008, 481915, 22-8MX21-1008

Documentation

Download Catalog
General Characteristics
Pulley Tolerances
Part Number Nomenclature Chart
Keyway Standards and Tolerances
Drive Alignment Guide
For custom parts click here
REACH Certification
RoHS Certification
