22-8MXF12X1, Timing Pulley

22-8MXF12X1 - Steel Powerhouse® MX Pulleys

Product Details for 22-8MXF12X1

Comparable to: 22-8MXF12X1

Click to Enlarge

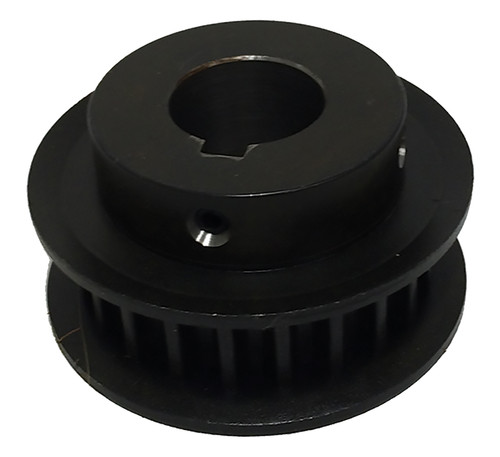

22-8MXF12X1, Timing Pulley, Steel, Black Oxide,

Learn more about 22-8MXF12X1 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 22-8MXF12X1
Teeth 22
Tooth Style 8MX
For Belt Width (mm) 12
Type 6F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type Finished Bore
Bore (in) 1 Inch Finished Bore
Pitch Diameter (in) 2.206
Outside Diameter (in) 2.143
Flange Diameter (in) 2.559
Face Width (in) 0.850
Overall Length (in) 1.313
Min. Bore (in) 0.500
Unit System Inch
MOQ 1
Weight (lb) 1.10
Part Number Cross Reference 22-8MXF12X1
Set Screw Quantity 2
