22-8MXF62X1, Timing Pulley

22-8MXF62X1 - Steel Powerhouse® MX Pulleys

22-8MXF62X1

22-8MXF62X1 - Steel Powerhouse® MX Pulleys Line Drawing

Click to Enlarge

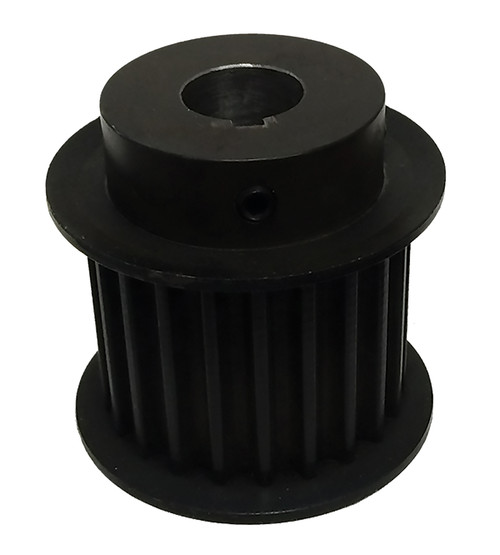

22-8MXF62X1, Timing Pulley, Steel, Black Oxide,

Learn more about 22-8MXF62X1 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 22-8MXF62X1
Teeth 22
Tooth Style 8MX
For Belt Width (mm) 62.00
Type 6F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type Finished Bore
Bore (in) 1.000
Bore Description 1 Inch Finished Bore
Pitch Diameter (in) 2.206
Outside Diameter (in) 2.143
Flange Diameter (in) 2.560
Face Width (in) 2.906
Overall Length (in) 3.563
Min. Bore (in) 1
Unit System Inch
P.D. (mm) 56.00
O.D. (mm) 54.40
MOQ 1
Weight (lb) 2.23
Part Number Cross Reference 22-8MXF62X1, 22-8MXF62X1
Set Screw Quantity 2
