22H200-6FS10, Timing Pulley

22H200-6FS10 - Steel Imperial Pitch Pulleys

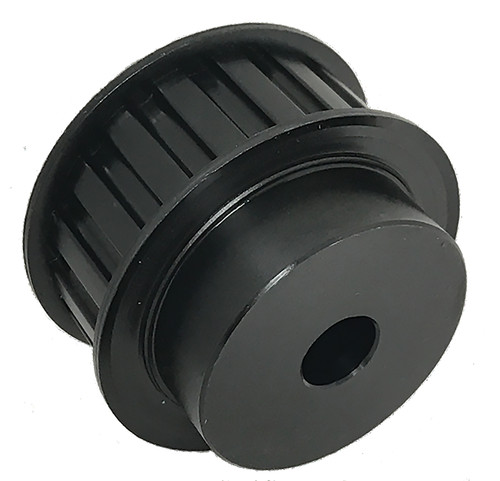

22H200-6FS10

Click to Enlarge

22H200-6FS10, Timing Pulley, Steel, Black Oxide,

Learn more about 22H200-6FS10 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 22H200-6FS10
Teeth 22
Tooth Style H
For Belt Width (in) 2.0000
Type 6F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 1 Inch Minimum Plain Bore
Pitch Diameter (in) 3.501
Outside Diameter (in) 3.447
Flange Diameter (in) 3.735
Face Width (in) 2.344
Overall Length (in) 3.281
Hub Diameter (in) 2.750
Min. Bore (in) 1.000
Pulley Belt Width (in) 2.094
Unit System Inch
P.D. (mm) 89.00
O.D. (mm) 87.60
MOQ 1
Weight (lb) 6.27
Part Number Cross Reference 22HB200, 114360, 22H200MPB, P22H200, 22H200-6FS10
