22L050-6FS6, Timing Pulley

22L050-6FS6

Click to Enlarge

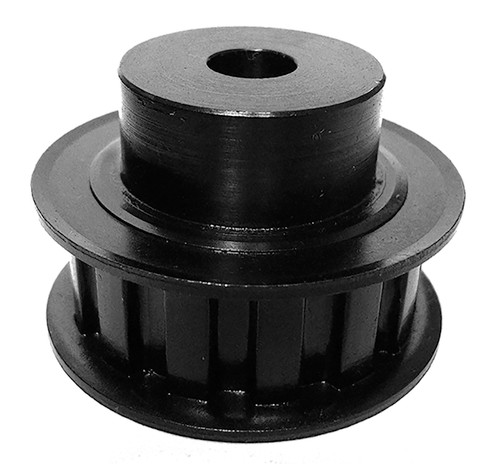

22L050-6FS6, Timing Pulley, Steel, Black Oxide,

Learn more about 22L050-6FS6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	22L050-6FS6
Teeth	22
Tooth Style	L
For Belt Width (in)	0.5000
Type	6F
Material	Steel
Finish	Black Oxide
Flange Material	Steel
Bore Type	Minimum Plain Bore
Bore (in)	0.500
Bore Description	1/2 Inch Minimum Plain Bore
Pitch Diameter (in)	2.626
Outside Diameter (in)	2.596
Flange Diameter (in)	2.875
Face Width (in)	0.750
Overall Length (in)	1.250
Hub Diameter (in)	2.000
Min. Bore (in)	0.5
Pulley Belt Width (in)	0.570
Unit System	Inch
P.D. (mm)	67.00
O.D. (mm)	65.90
MOQ	1
Weight (lb)	1.51
Part Number Cross Reference	A 6C4-22DFB5016, A6C4-22DFB5016, 22L050, 22LB050, 22L050 X 1/2 MPB, 22L050MPB, P22L050, 6495K18, P22L050-PB, 22L050-6FS6, 114306, 22L050-6FS6
