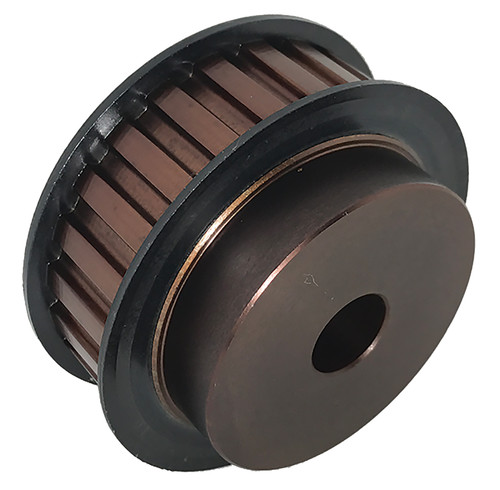

22L075-6FS7, Timing Pulley

22L075-6FS7

Click to Enlarge

22L075-6FS7, Timing Pulley, Steel, Black Oxide,

Learn more about 22L075-6FS7 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	22L075-6FS7
Teeth	22
Tooth Style	L
For Belt Width (in)	0.7500
Type	6F
Material	Steel
Finish	Black Oxide
Flange Material	Steel
Bore Type	Minimum Plain Bore
Bore (in)	0.625
Bore Description	5/8 Inch Minimum Plain Bore
Pitch Diameter (in)	2.626
Outside Diameter (in)	2.596
Flange Diameter (in)	2.875
Face Width (in)	1.000
Overall Length (in)	1.500
Hub Diameter (in)	2.000
Min. Bore (in)	0.625
Pulley Belt Width (in)	0.820
Unit System	Inch
P.D. (mm)	67.00
O.D. (mm)	65.90
MOQ	1
Weight (lb)	1.81
Part Number Cross Reference	22L076, 22LB075, 22L075 X 5/8 MPB, 22L076MPB, P22L076, P22L075-PB, 22L075-6FS7, 114317, 22L075-6FS7
