22MP025-6CA3 - Aluminum Imperial Pitch Pulleys

22MP025-6CA3 - Aluminum Imperial Pitch Pulleys

Product Details for 22MP025-6CA3

Comparable to: 22MP025-6CA3, A 6A16-022DF2508, A6A16-022DF2508, 22MP-025 1/4 6FC, 22MXL025-6A X 1/4, 1375K

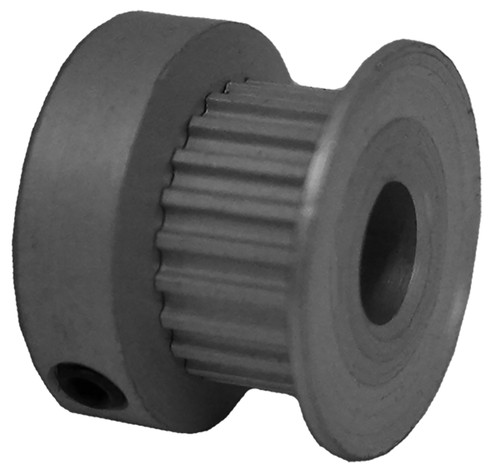

22MP025-6CA3, Timing Pulley, Powerhouse Timing, 1/4 Inch Bore, Aluminum

Our 22MP025-6CA3 Aluminum Imperial Pitch Pulleys are made from the highest quality materials & can meet any company's needs . Contact B&B Manufacturing today for a quote!

Specifications

Product Number 22MP025-6CA3
Teeth 22
Tooth Style MXL
For Belt Width (in) 0.250
Type 6C
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 0.560
Outside Diameter (in) 0.540
Flange Diameter (in) 0.740
Face Width (in) 0.337
Overall Length (in) 0.563
Hub Diameter (in) 0.740
Set Screw 2 x 6-40 @ 90°
Min. Bore (in) 0.250
Pulley Belt Width (in) 0.290
Unit System Inch
Max. Bore (in) 0.49
Weight (lb) 0.02
Part Number Cross Reference 22MP025-6CA3, A 6A16-022DF2508, A6A16-022DF2508, 22MP-025 1/4 6FC, 22MXL025-6A X 1/4, 1375K
