22MP025MIA6, Timing Pulley

22MP025MIA6

Click to Enlarge

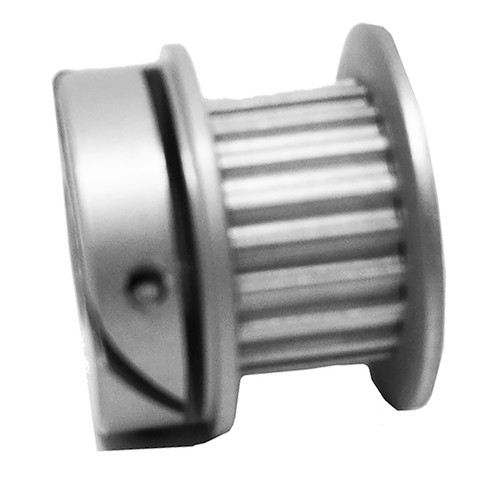

22MP025MIA6, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 22MP025MIA6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	22MP025MIA6
Teeth	22
Tooth Style	MXL
For Belt Width (in)	0.2500
Type	6CI
Material	Aluminum
Finish	Clear Anodized
Flange Material	Aluminum
Bore Type	EZ Lock
Bore Description	6 mm Finished Bore
Bore (mm)	6.00
Pitch Diameter (in)	0.560
Outside Diameter (in)	0.540
Flange Diameter (in)	0.740
Face Width (in)	0.389
Unit System	Metric
P.D. (mm)	14.00
O.D. (mm)	13.70
Flange Diameter (mm)	18.80
Face Width (mm)	9.90
Overall Length (mm)	14.50
Hub Diameter (mm)	15.90
Number & Screw Size	1 x M3
MOQ	1
Weight (lb)	0.02
Part Number Cross Reference	A6D16M022DF6006, 22MP025MIA6, 22MP025MIA6
