22XH400-6FS10, Timing Pulley

22XH400-6FS10 - Steel Imperial Pitch Pulleys

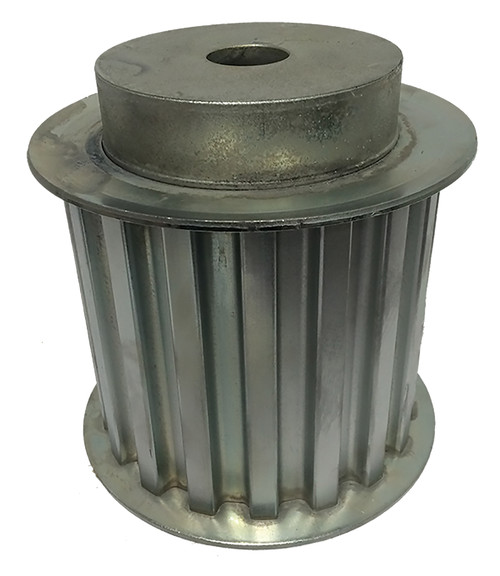

22XH400-6FS10

Click to Enlarge

22XH400-6FS10, Timing Pulley, Steel, Black Oxide,

Learn more about 22XH400-6FS10 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 22XH400-6FS10
Teeth 22
Tooth Style XH
For Belt Width (in) 4.0000
Type 6F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 1 Inch Minimum Plain Bore
Pitch Diameter (in) 6.127
Outside Diameter (in) 6.017
Flange Diameter (in) 6.688
Face Width (in) 4.688
Overall Length (in) 5.938
Hub Diameter (in) 4.750
Min. Bore (in) 1.000
Unit System Inch
P.D. (mm) 156.00
O.D. (mm) 152.80
MOQ 1
Weight (lb) 40.80
Part Number Cross Reference 22XHB400, 22XH400-6FS10
