23V1060SK, V-Belt Pulley

23V1060SK, 3V10.6-2-SK, 20180518, 3V1062, 2-3V1.06, 2/3V1060SK

23V1060SK

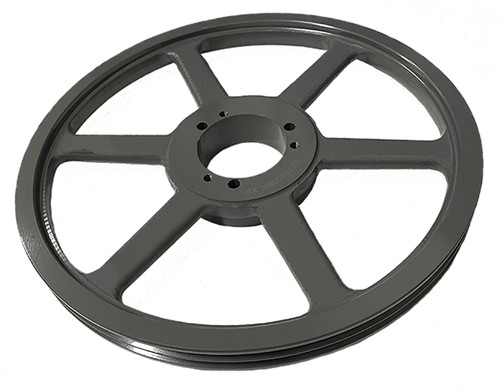

23V1060SK, V-Belt Pulley, Cast Iron

Learn more about 23V1060SK V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 23V1060SK
Type C-3
Material Cast Iron
Bore Type QD
Bore Description Bored for SK Bushing
Pitch Diameter (in) 10.550
Outside Diameter (in) 10.600
Face Width (in) 1.094
Min. Bore (in) 0.5
Unit System Inch
Bushing SK
MOQ 1
Sheave Type 3V
For Belt Type 3V
Weight (lb) 12.50
Part Number Cross Reference QD2/3V10.60, 23V1060SK, 3V10.6-2-SK, 20180518, 2-3V10.60-SK SHEAVE, 3V1062, 2-3V10.60, 23V1060SK, 455141, 23V1060SK
Grooves 2

Related Products

Comparable to: QD2/3V10.60, 23V1060SK, 3V10.6-2-SK, 20180518, 2-3V10.60-SK SHEAVE, 3V1062, 2-3V10.60, 23V1060SK, 455141, 23V1060SK
