23V1900SK, V-Belt Pulley

23V1900SK

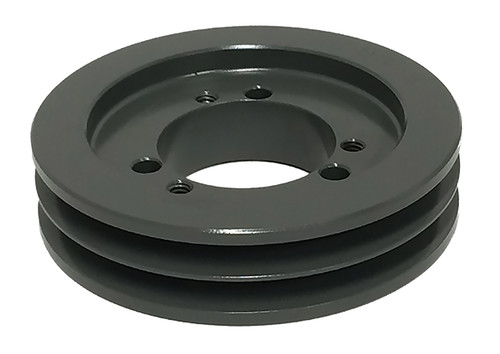

23V1900SK, V-Belt Pulley, Cast Iron

Learn more about 23V1900SK V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	23V1900SK
Type	C-3
Material	Cast Iron
Bore Type	QD
Bore Description	Bored for SK Bushing
Pitch Diameter (in)	18.950
Outside Diameter (in)	19.000
Face Width (in)	1.094
Min. Bore (in)	0.5
Unit System	Inch
Bushing	SK
MOQ	1
Sheave Type	3V
For Belt Type	3V
Weight (lb)	27.00
Part Number Cross Reference	QD2/3V19.00, 23V1900SK, 3V19.0-2-SK, 20180534, 2-3V19.00-SK SHEAVE, 3V1902, 2-3V19.00, 23V1900SK, 455143, 23V1900SK
Grooves	2
