23V235JA, V-Belt Pulley

23V235JA, 3V2.35-2-JA, 20180543, 3V2352, 2-3V2.35, 2/3V235JA

Product Details for 23V235JA

Comparable to: 23V235JA, QD2/3V2.35, 3V2.35-2-JA, 20180543, 3V2352, 2-3V2.35, 2/3V235

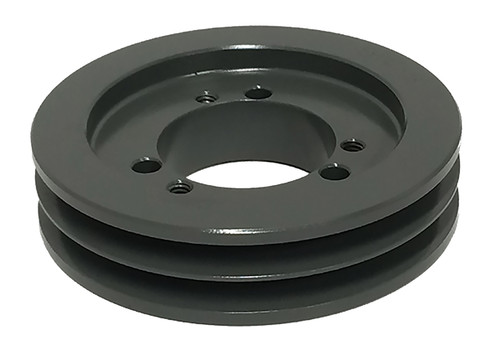

23V235JA, V-Belt Pulley, Cast Iron

Learn more about 23V235JA V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 23V235JA
Type E1
Material Cast Iron
Bore Type QD
Bore (in) JA
Pitch Diameter (in) 2.300
Outside Diameter (in) 2.350
Face Width (in) 1.094
Min. Bore (in) 0.500
Unit System Inch
Bushing JA
Max. Bore (in) 1.250
For Belt Type 3V
Weight (lb) 0.60
Part Number Cross Reference 23V235JA, QD2/3V2.35, 3V2.35-2-JA, 20180543, 3V2352, 2-3V2.35, 2/3V235
