23V2500SF, V-Belt Pulley

23V2500SF, 3V25.0-2-SF, 20180556, 3V2502, 2-3V2.5, 2/3V2500SF

Product Details for 23V2500SF

Comparable to: 23V2500SF, QD2/3V25.00, 3V25.0-2-SF, 20180556, 3V2502, 2-3V2.5, 2/3V2500

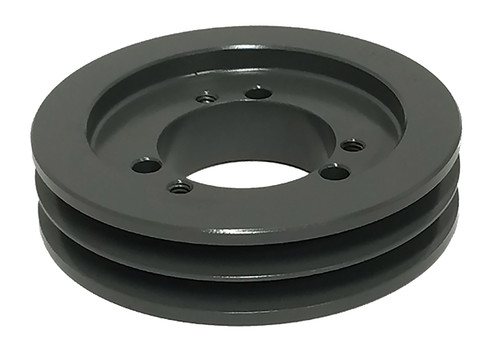

23V2500SF, V-Belt Pulley, Cast Iron

Learn more about 23V2500SF V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 23V2500SF
Type C3
Material Cast Iron
Bore Type QD
Bore (in) SF
Pitch Diameter (in) 24.950
Outside Diameter (in) 25.000
Face Width (in) 1.094
Min. Bore (in) 0.500
Unit System Inch
Bushing SF
Max. Bore (in) 2.9375
For Belt Type 3V
Weight (lb) 38.00
Part Number Cross Reference 23V2500SF, QD2/3V25.00, 3V25.0-2-SF, 20180556, 3V2502, 2-3V2.5, 2/3V2500
