23V250JA, V-Belt Pulley

23V250JA, 3V2.5-2-JA, 20180545, 3V252, 2-3V2.5, 2/3V250JA

Product Details for 23V250JA

Comparable to: 23V250JA, QD2/3V2.50, 3V2.5-2-JA, 20180545, 3V252, 2-3V2.5, 2/3V250

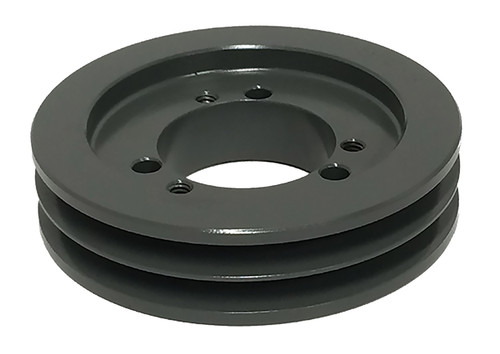

23V250JA, V-Belt Pulley, Cast Iron

Learn more about 23V250JA V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 23V250JA
Type E1
Material Cast Iron
Bore Type QD
Bore (in) JA
Pitch Diameter (in) 2.450
Outside Diameter (in) 2.500
Face Width (in) 1.094
Min. Bore (in) 0.500
Unit System Inch
Bushing JA
Max. Bore (in) 1.250
For Belt Type 3V
Weight (lb) 0.70
Part Number Cross Reference 23V250JA, QD2/3V2.50, 3V2.5-2-JA, 20180545, 3V252, 2-3V2.5, 2/3V250
