23V280JA, V-Belt Pulley

23V280JA, 3V2.8-2-JA, 20180552, 3V282, 2-3V2.8, 2/3V280JA

23V280JA

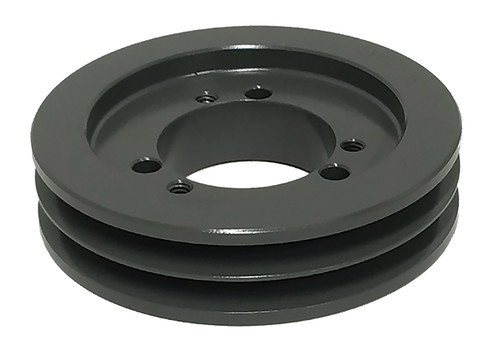

23V280JA, V-Belt Pulley, Cast Iron

Learn more about 23V280JA V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 23V280JA
Type D-1
Material Cast Iron
Bore Type QD
Bore Description Bored for JA Bushing
Pitch Diameter (in) 2.750
Outside Diameter (in) 2.800
Face Width (in) 1.094
Min. Bore (in) 0.5
Unit System Inch
Bushing JA
MOQ 1
Sheave Type 3V
For Belt Type 3V
Weight (lb) 0.90
Part Number Cross Reference QD2/3V2.80, 23V280JA, 3V2.8-2-JA, 20180552, 2-3V2.80-JA SHEAVE, 3V282, 2-3V2.80, 23V280JA, 455126, 23V280JA
Grooves 2

Related Products

Comparable to: QD2/3V2.80, 23V280JA, 3V2.8-2-JA, 20180552, 2-3V2.80-JA SHEAVE, 3V282, 2-3V2.80, 23V280JA, 455126, 23V280JA
