23V300JA, V-Belt Pulley

23V300JA, 3V3.0-2-JA, 20180563, 3V302, 2-3V3.0, 2/3V300JA

23V300JA

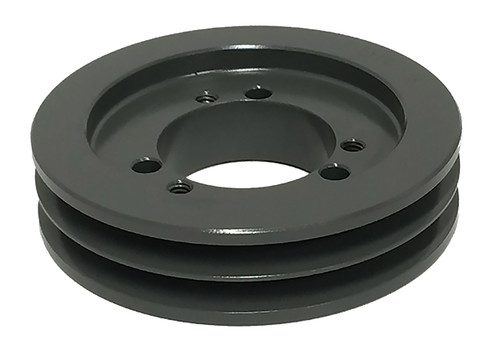

23V300JA, V-Belt Pulley, Cast Iron

Learn more about 23V300JA V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 23V300JA
Type D-1
Material Cast Iron
Bore Type QD
Bore Description Bored for JA Bushing
Pitch Diameter (in) 2.950
Outside Diameter (in) 3.000
Face Width (in) 1.094
Min. Bore (in) 0.5
Unit System Inch
Bushing JA
MOQ 1
Sheave Type 3V
For Belt Type 3V
Weight (lb) 1.20
Part Number Cross Reference QD2/3V3.00, 23V300JA, 3V3.0-2-JA, 20180563, 2-3V3.00-JA SHEAVE, 3V302, 2-3V3.00, 23V300JA, 455127, 23V300JA
Grooves 2

Related Products

Comparable to: QD2/3V3.00, 23V300JA, 3V3.0-2-JA, 20180563, 2-3V3.00-JA SHEAVE, 3V302, 2-3V3.00, 23V300JA, 455127, 23V300JA
