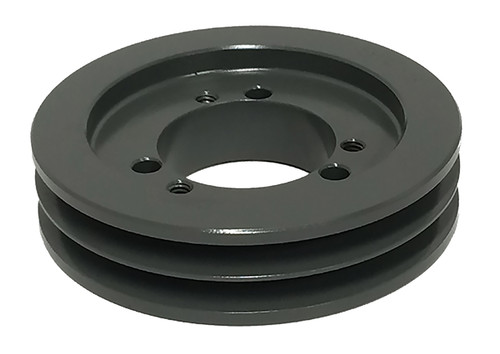

23V475SH, V-Belt Pulley

23V475SH

23V475SH, V-Belt Pulley, Cast Iron

Learn more about 23V475SH V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	23V475SH
Type	D-1
Material	Cast Iron
Bore Type	QD
Bore Description	Bored for SH Bushing
Pitch Diameter (in)	4.700
Outside Diameter (in)	4.750
Face Width (in)	1.094
Min. Bore (in)	0.5
Unit System	Inch
Bushing	SH
MOQ	1
Sheave Type	3V
For Belt Type	3V
Weight (lb)	3.10
Part Number Cross Reference	QD2/3V4.75, 23V475SH, 3V4.75-2-SH, 20180594, 2-3V4.75-SH SHEAVE, 3V4752, 2-3V4.75, 23V475SH, 455133, 23V475SH
Grooves	2
