23V690SDS, V-Belt Pulley

23V690SDS, 3V6.9-2-SDS, 20180642, 3V692, 2-3V6.9, 2/3V690SDS

Product Details for 23V690SDS

Comparable to: QD2/3V6.90, 78722069, 2 3V 690 SDS, 2-3V690.SDS, 23V690SDS, 3V6.9-2-SDS, 20180642, 2/3V6.9–SDS, 3V692, 23V6.9, 2/3V690SDS, 55519284, 2-3V6.9, 2-3V69, 455138

Click to Enlarge

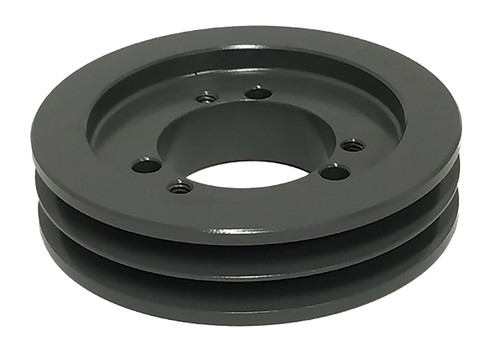

23V690SDS, V-Belt Pulley, Cast Iron

Learn more about 23V690SDS V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 23V690SDS
Type D2
Material Cast Iron
Bore Type QD
Bore (in) SDS
Pitch Diameter (in) 6.850
Outside Diameter (in) 6.900
Face Width (in) 1.094
Min. Bore (in) 0.500
Unit System Inch
Bushing SDS
Max. Bore (in) 2.000
MOQ 1
Sheave Type 3V
For Belt Type 3V
Weight (lb) 7.50
Part Number Cross Reference QD2/3V6.90, 78722069, 2 3V 690 SDS, 2-3V690.SDS, 23V690SDS, 3V6.9-2-SDS, 20180642, 2/3V6.9–SDS, 3V692, 23V6.9, 2/3V690SDS, 55519284, 2-3V6.9, 2-3V69, 455138
Grooves 2
