24-3M06-6A3, Timing Pulley

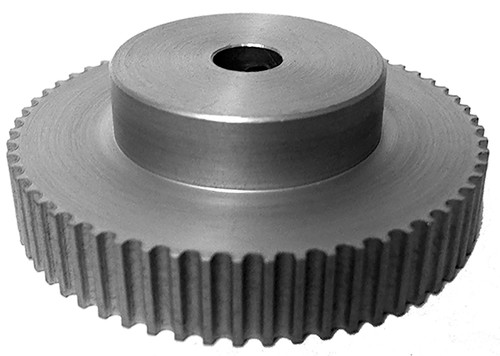

24-3M06-6A3 - Aluminum Powerhouse®HTD® Pulleys

24-3M06-6A3

24-3M06-6A3 - Aluminum Powerhouse®HTD® Pulleys Line Drawing

Click to Enlarge

24-3M06-6A3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 24-3M06-6A3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 24-3M06-6A3
Teeth 24
Tooth Style HTD3mm
For Belt Width (mm) 6.00
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 0.250
Bore Description 1/4 Inch Finished Bore
Pitch Diameter (in) 0.902
Outside Diameter (in) 0.872
Face Width (in) 0.386
Overall Length (in) 0.691
Hub Diameter (in) 0.625
Min. Bore (in) 0.25
Unit System Inch
P.D. (mm) 23.00
O.D. (mm) 22.20
MOQ 1
Weight (lb) 0.03
Part Number Cross Reference A 6A23-024NF0608, A6A23-024NF0608, 22M3-L06M-6, 24-3M06-6A3, 24-3M06-6A3
Set Screw Quantity 2
