24-5M09-6FA3, Timing Pulley

24-5M09-6FA3 - Aluminum Powerhouse®HTD® Pulleys

24-5M09-6FA3

Click to Enlarge

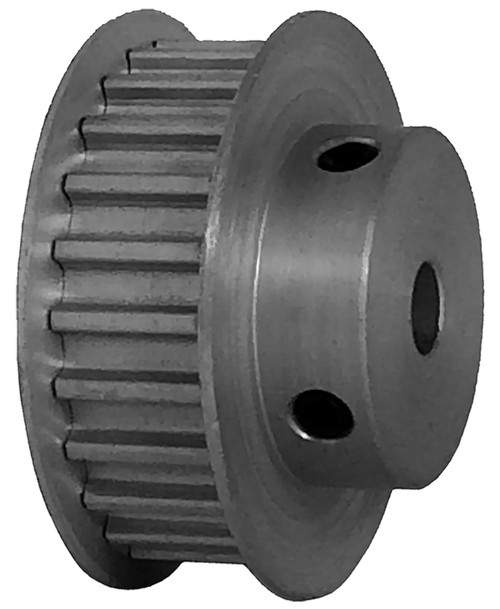

24-5M09-6FA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 24-5M09-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 24-5M09-6FA3
Teeth 24
Tooth Style HTD5mm
For Belt Width (mm) 9.00
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 0.250
Bore Description 1/4 Inch Finished Bore
Pitch Diameter (in) 1.504
Outside Diameter (in) 1.459
Flange Diameter (in) 1.625
Face Width (in) 0.540
Overall Length (in) 0.852
Hub Diameter (in) 1.000
Min. Bore (in) 0.25
Pulley Belt Width (in) 0.420
Unit System Inch
P.D. (mm) 38.00
O.D. (mm) 37.10
MOQ 1
Weight (lb) 0.11
Part Number Cross Reference A 6A25-024DF0908, A6A25-024DF0908, P24-5M-09AL, 24M5-L09M-6F, PT024G08L09T, 24-5M-09 X 1/4, 24-5M09-6FA3, 24-5M09-6FA3
Set Screw Quantity 2

Comparable to: A 6A25-024DF0908, A6A25-024DF0908, P24-5M-09AL, 24M5-L09M-6F, PT024G08L09T, 24-5M-09 X 1/4, 24-5M09-6FA3, 24-5M09-6FA3
