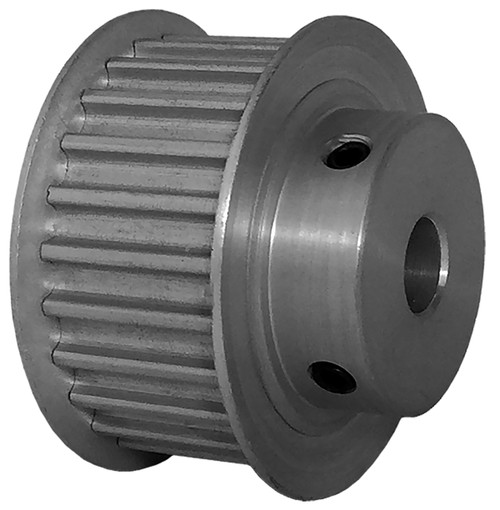

24-5M15M6FA8, Timing Pulley

24-5M15M6FA8 - Aluminum Powerhouse®HTD® Pulleys

24-5M15M6FA8

Click to Enlarge

24-5M15M6FA8, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 24-5M15M6FA8 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 24-5M15M6FA8
Teeth 24
Tooth Style HTD5mm
For Belt Width (mm) 15.00
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore Description 8 mm Finished Bore
Bore (mm) 8.00
Pitch Diameter (in) 1.504
Outside Diameter (in) 1.459
Pulley Belt Width (mm) 16.50
Unit System Metric
P.D. (mm) 38.00
O.D. (mm) 37.10
Flange Diameter (mm) 41.30
Face Width (mm) 19.80
Overall Length (mm) 27.80
Hub Diameter (mm) 25.40
MOQ 1
Weight (lb) 0.15
Part Number Cross Reference A 6A25M024DF1508, A6A25M024DF1508, 24-5M15M6FA8, 24-5M15M6FA8
Set Screw Quantity 2
