24L075-6FA6 Imperial Pitch Pulleys

24L075-6FA6

Product Details for 24L075-6FA6

Comparable to: 24L075-6FA6,

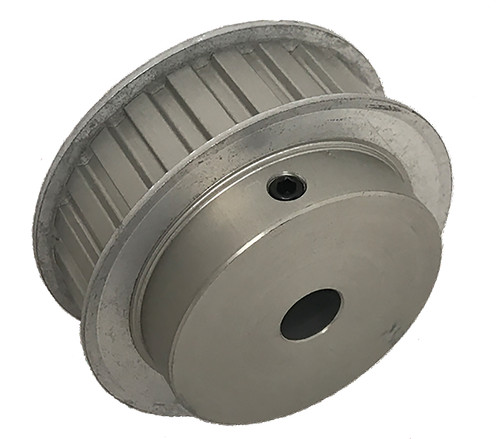

24L075-6FA6, Timing Pulley, Powerhouse Timing, 1/2 Inch Bore, Aluminum

Specifications

Product Number 24L075-6FA6
Teeth 24
Tooth Style L
For Belt Width (in) 0.750
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 0.5
Pitch Diameter (in) 2.865
Outside Diameter (in) 2.835
Flange Diameter (in) 3.094
Face Width (in) 1.000
Overall Length (in) 1.500
Hub Diameter (in) 2.250
Set Screw 2 x 1/4-20 @ 90°
Min. Bore (in) 0.5
Unit System Inch
Weight (lb) 2.10
List Price (1-9 Qty.) (USD) 48
Discount Price (10-24 Qty.) (USD) 45.6
Discount Price (25-49 Qty.) (USD) 40.8
Discount Price (50-99 Qty.) (USD) 36
Discount Price (100-249 Qty.) (USD) 32.4
Part Number Cross Reference 24L075-6FA6,

Documentation

Download Catalog 2015_BBMAN_CATALOG_37.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification 24L075-6FA6_REACH_cert
RoHS Certification 24L075-6FA6_RoHS_cert
