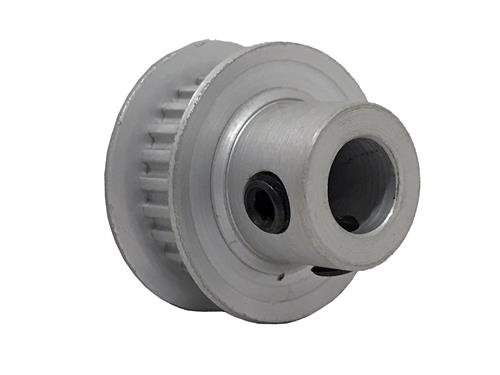

24LT187-6FA3, Timing Pulley

24LT187-6FA3 - Aluminum Imperial Pitch Pulleys

24LT187-6FA3

24LT187-6FA3 - Aluminum Imperial Pitch Pulleys Line Drawing

Click to Enlarge

24LT187-6FA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 24LT187-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 24LT187-6FA3
Teeth 24
Tooth Style LT
For Belt Width (in) 0.1875
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore Description 1/4 Inch Finished Bore
Pitch Diameter (in) 0.623
Outside Diameter (in) 0.603
Flange Diameter (in) 0.790
Face Width (in) 0.324
Overall Length (in) 0.625
Hub Diameter (in) 0.442
Min. Bore (in) 0.25
Pulley Belt Width (in) 0.220
Unit System Inch
P.D. (mm) 16.00
O.D. (mm) 15.30
MOQ 1
Weight (lb) 0.02
Part Number Cross Reference 24LT187-6FA3
Set Screw Quantity 2
