24MP025-IA3 Imperial Pitch Pulleys

24MP025-IA3, A 6D16-024DF2508, A6D16-024DF2508

Product Details for 24MP025-IA3

Comparable to: 24MP025-IA3, A 6D16-024DF2508, A6D16-024DF2508

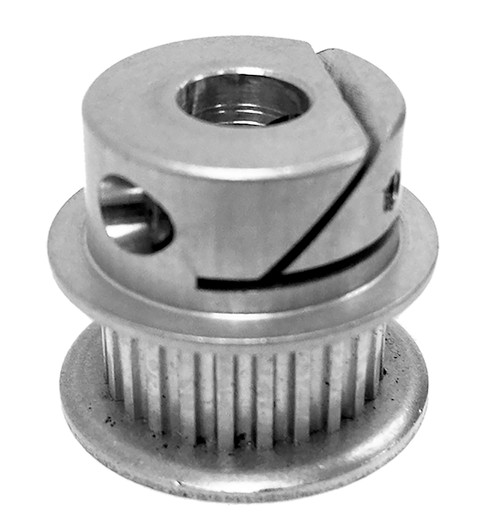

24MP025-IA3, Timing Pulley, Powerhouse Timing, 1/4 Inch Bore, Aluminum, E-Z Lock Hub

Specifications

Product Number 24MP025-IA3
Teeth 24
Tooth Style MXL
For Belt Width (in) 0.250
Type 6CI
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 0.611
Outside Diameter (in) 0.591
Flange Diameter (in) 0.790
Face Width (in) 0.389
Overall Length (in) 0.688
Hub Diameter (in) 0.625
Min. Bore (in) 0.25
Unit System Inch
Number & Screw Size 1 x 2-56
Weight (lb) 0.02
Part Number Cross Reference 24MP025-IA3, A 6D16-024DF2508, A6D16-024DF2508

Documentation

Download Catalog 2015_BBMAN_CATALOG_5.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification 24MP025-IA3_REACH_cert
RoHS Certification 24MP025-IA3_RoHS_cert
