24T10-PS160A Bar Stock

24T10-PS160A, A6A38M024T16, A 6A38M024T16, 24T10-PS-160

Product Details for 24T10-PS160A

Comparable to: 24T10-PS160A, A6A38M024T16, A 6A38M024T16, 24T10-PS-160

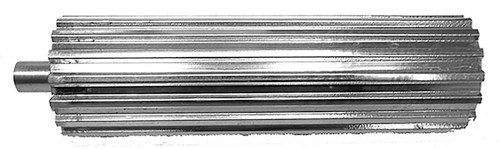

24T10-PS160A, Timing Pulley Stock, Powerhouse Timing, 160 mm Usable Length, Aluminum

Specifications

Product Number 24T10-PS160A
Teeth 24
Tooth Style T10mm
Material Aluminum
Pitch Diameter (in) 3.014
Outside Diameter (in) 2.927
Overall Length (in) 7.300
Unit System Metric
Min. Usable Length (in) 6.300
P.D. (mm) 76.60
O.D. (mm) 74.30
Min. Usable Length (mm) 160.00
Overall Length (mm) 185.00
Weight (lb) 4.20
List Price (1-9 Qty.) (USD) 70.39
Discount Price (10-24 Qty.) (USD) 58.07
Discount Price (25-49 Qty.) (USD) 49.27
Discount Price (50-99 Qty.) (USD) 43.99
Part Number Cross Reference 24T10-PS160A, A6A38M024T16, A 6A38M024T16, 24T10-PS-160

Documentation

Download Catalog 2015_BBMAN_CATALOG_282.pdf
For custom parts click here custom.html
REACH Certification 24T10-PS160A_REACH_cert
RoHS Certification 24T10-PS160A_RoHS_cert
