24XL025-6FA3, Timing Pulley

24XL025-6FA3 - Aluminum Imperial Pitch Pulleys

24XL025-6FA3

Click to Enlarge

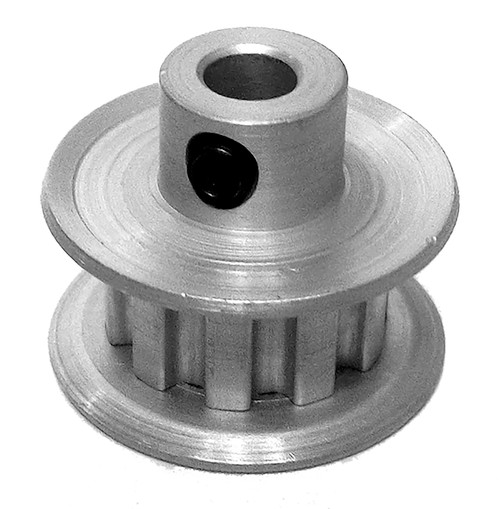

24XL025-6FA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 24XL025-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 24XL025-6FA3
Teeth 24
Tooth Style XL
For Belt Width (in) 0.2500
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 0.250
Bore Description 1/4 Inch Finished Bore
Pitch Diameter (in) 1.528
Outside Diameter (in) 1.508
Flange Diameter (in) 1.750
Face Width (in) 0.438
Overall Length (in) 0.781
Hub Diameter (in) 1.062
Min. Bore (in) 0.25
Pulley Belt Width (in) 0.310
Unit System Inch
P.D. (mm) 39.00
O.D. (mm) 38.30
MOQ 1
Weight (lb) 0.11
Part Number Cross Reference A 6A3-24DF02508, A6A3-24DF02508, PB24XL025, 24XL025 X 1/4 6F, PT024D08L04T, TP20A4W4-24, 24XL025-1A X 1/4, 24XL025-6FA3, 24XL025-6FA3
Set Screw Quantity 2

Comparable to: A 6A3-24DF02508, A6A3-24DF02508, PB24XL025, 24XL025 X 1/4 6F, PT024D08L04T, TP20A4W4-24, 24XL025-1A X 1/4, 24XL025-6FA3, 24XL025-6FA3
