24XXHR500, Timing Pulley

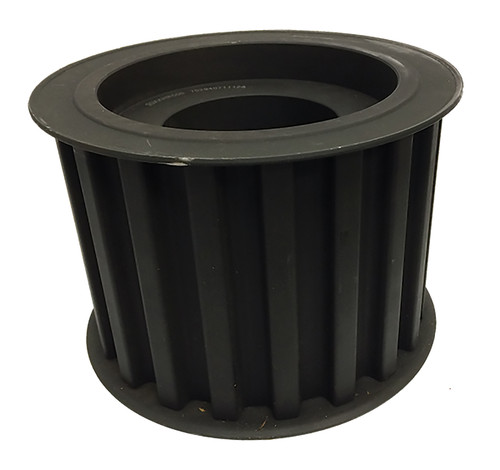

24XXHR500 - Cast Iron Imperial Pitch Pulleys

24XXHR500

24XXHR500 - Cast Iron Imperial Pitch Pulleys Line Drawing

Click to Enlarge

24XXHR500, Timing Pulley, Cast Iron

Learn more about 24XXHR500 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 24XXHR500
Teeth 24
Tooth Style XXH
For Belt Width (in) 5.0000
Type 12
Material Cast Iron
Flange Material Steel
Bore Type Split Taper
Bore Description Bored for R2 Bushing
Pitch Diameter (in) 9.549
Outside Diameter (in) 9.429
Flange Diameter (in) 10.313
Face Width (in) 5.813
Overall Length (in) 6.094
Min. Bore (in) 1.375
Unit System Inch
Bushing R2
P.D. (mm) 243.00
O.D. (mm) 239.50
MOQ 1
Weight (lb) 61.50
Part Number Cross Reference 24XXHR500, 24XXHR500, 24XXHR500
