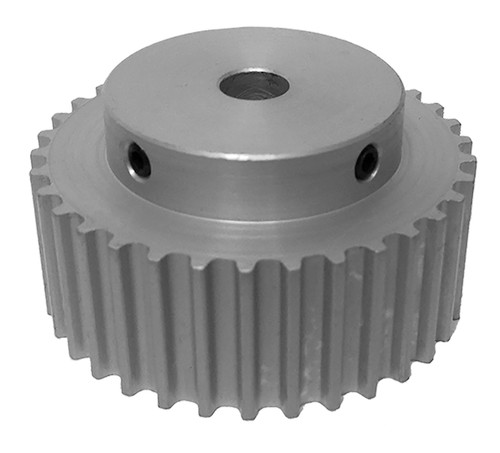

25-5M15M6A8, Timing Pulley

25-5M15M6A8 - Aluminum Powerhouse®HTD® Pulleys

25-5M15M6A8

25-5M15M6A8 - Aluminum Powerhouse®HTD® Pulleys Line Drawing

Click to Enlarge

25-5M15M6A8, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 25-5M15M6A8 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 25-5M15M6A8
Teeth 25
Tooth Style HTD5mm
For Belt Width (mm) 15.00
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore Description 8 mm Finished Bore
Bore (mm) 8.00
Pitch Diameter (in) 1.566
Outside Diameter (in) 1.521
Pulley Belt Width (mm) 15.00
Unit System Metric
P.D. (mm) 40.00
O.D. (mm) 38.60
Face Width (mm) 19.80
Overall Length (mm) 27.80
Hub Diameter (mm) 25.40
MOQ 1
Weight (lb) 0.12
Part Number Cross Reference A 6A25M025NF1508, A6A25M025NF1508, 25-5M15M6A8, 25-5M15M6A8
Set Screw Quantity 2
