25-5P09-6FA3, Timing Pulley

25-5P09-6FA3 - Aluminum Powerhouse® Pulleys

Product Details for 25-5P09-6FA3

Comparable to: 25-5P09-6FA3, A 6A55-025DF0912, A6A55-025DF0912, P25-5MGT-09AL, 78450925

Click to Enlarge

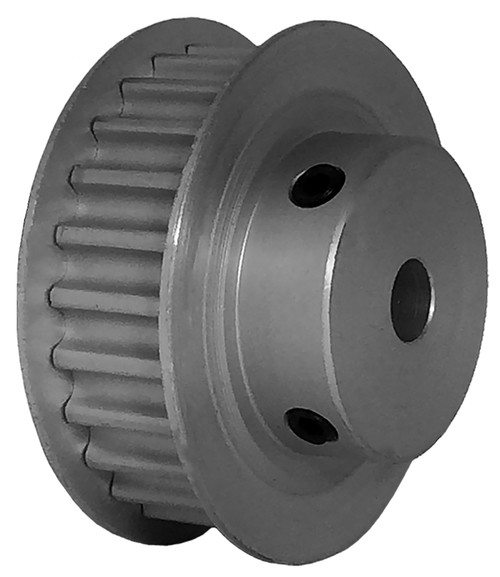

25-5P09-6FA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 25-5P09-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 25-5P09-6FA3
Teeth 25
Tooth Style GT 5mm
For Belt Width (mm) 9.000
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 1.566
Outside Diameter (in) 1.521
Flange Diameter (in) 1.688
Face Width (in) 0.546
Overall Length (in) 0.859
Hub Diameter (in) 1.000
Set Screw 2 x 8-32 @ 90°
Min. Bore (in) 0.250
Unit System Inch
Max. Bore (in) 0.75
Weight (lb) 0.12
Part Number Cross Reference 25-5P09-6FA3, A 6A55-025DF0912, A6A55-025DF0912, P25-5MGT-09AL, 78450925
