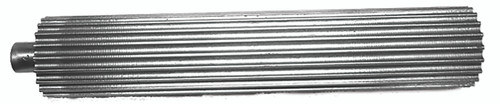

25-8M-PS10S, Timing Pulley Stock

25-8M-PS10S

25-8M-PS10S, Timing Pulley Stock, Steel

Learn more about 25-8M-PS10S Timing Pulley Stocks and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	25-8M-PS10S
Teeth	25
Tooth Style	HTD8mm
Material	Steel
Pitch Diameter (in)	2.506
Outside Diameter (in)	2.452
Overall Length (in)	11.000
Unit System	Inch
Min. Usable Length (in)	10.000
P.D. (mm)	63.70
O.D. (mm)	62.30
MOQ	1
Weight (lb)	13.91
Part Number Cross Reference	25-8M-PS-10S, 25-8M-PS10S, 25-8M-PS10S
Shank Length (in)	1.0000
