25-8P30-1108, Timing Pulley

25-8P30-1108 - Steel Powerhouse® Pulleys

Product Details for 25-8P30-1108

Comparable to: P25-8MGT-30, 77083025, 2762805, B258M30TL

Click to Enlarge

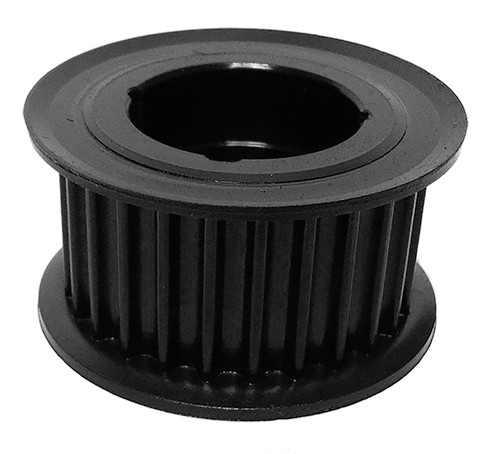

25-8P30-1108, Timing Pulley, Steel, Black Oxide,

Learn more about 25-8P30-1108 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 25-8P30-1108
Teeth 25
Tooth Style 8P
For Belt Width (mm) 30
Type A1F
Material Steel
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 1108
Pitch Diameter (in) 2.507
Outside Diameter (in) 2.453
Flange Diameter (in) 2.953
Face Width (in) 1.500
Overall Length (in) 1.500
Min. Bore (in) 0.500
Pulley Belt Width (in) 1.260
Unit System Inch
Bushing 1108
MOQ 1
Weight (lb) 1.09
Part Number Cross Reference P25-8MGT-30, 77083025, 2762805, B258M30TL
