25A24, Roller Chain Sprocket

25A24

25A24

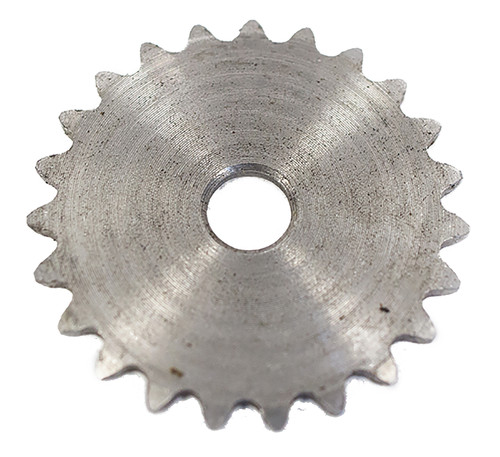

25A24, Roller Chain Sprocket, Steel

Learn more about 25A24 Roller Chain Sprockets and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 25A24
Teeth 24
Tooth Style 25
Type A
Material Steel
Bore Type Minimum Plain Bore
Bore (in) 0.375
Bore Description 3/8 Inch Minimum Plain Bore
Pitch Diameter (in) 1.915
Outside Diameter (in) 2.049
Overall Length (in) 0.110
Min. Bore (in) 0.375
Unit System Inch
MOQ 1
Weight (lb) 0.08
Part Number Cross Reference 25A24, 25A24, 25A24, 25A24, 25A24
Number of Strands 1
Number of Hubs 0

Related Products

Comparable to: 25A24, 25A24, 25A24, 25A24, 25A24

Documentation

Download Catalog
For custom parts click here
REACH Certification
RoHS Certification
