25MP025MIA6, Timing Pulley

25MP025MIA6 - E-Z Lock Hub Aluminum Metric Pulleys

25MP025MIA6

Click to Enlarge

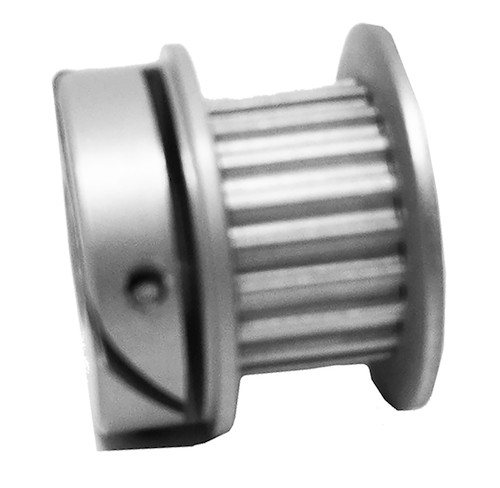

25MP025MIA6, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 25MP025MIA6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 25MP025MIA6
Teeth 25
Tooth Style MXL
For Belt Width (in) 0.2500
Type 6CI
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type EZ Lock
Bore Description 6 mm Finished Bore
Bore (mm) 6.00
Pitch Diameter (in) 0.637
Outside Diameter (in) 0.617
Flange Diameter (in) 0.815
Unit System Metric
P.D. (mm) 16.00
O.D. (mm) 15.70
Flange Diameter (mm) 20.70
Face Width (mm) 9.90
Overall Length (mm) 17.30
Hub Diameter (mm) 15.90
Number & Screw Size 1 x M3
MOQ 1
Weight (lb) 0.02
Part Number Cross Reference A6D16M025DF6006, 25MP025MIA6, 25MP025MIA6
