25V1320SF, V-Belt Pulley

25V1320SF, 5V13.2-2-SF, 20180713, 5V1322, 2-5V13.2, 2/5V1320SF

25V1320SF

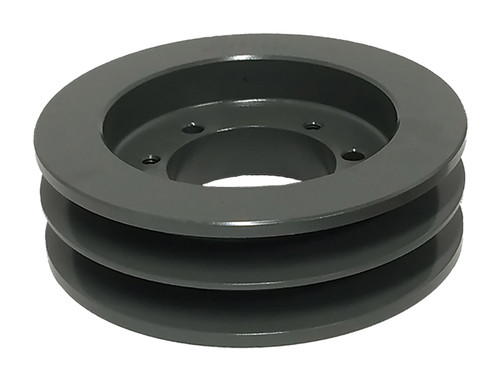

25V1320SF, V-Belt Pulley, Cast Iron

Learn more about 25V1320SF V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 25V1320SF
Type D-3
Material Cast Iron
Bore Type QD
Bore Description Bored for SF Bushing
Pitch Diameter (in) 13.100
Outside Diameter (in) 13.200
Face Width (in) 1.688
Min. Bore (in) 0.5
Unit System Inch
Bushing SF
MOQ 1
Sheave Type 5V
For Belt Type 5V
Weight (lb) 22.60
Part Number Cross Reference QD2/5V13.20, 25V1320SF, 5V13.2-2-SF, 20180713, 2-5V13.20-SF SHEAVE, 5V1322, 2-5V13.20, 25V1320SF, 455260, 25V1320SF
Grooves 2

Related Products

Comparable to: QD2/5V13.20, 25V1320SF, 5V13.2-2-SF, 20180713, 2-5V13.20-SF SHEAVE, 5V1322, 2-5V13.20, 25V1320SF, 455260, 25V1320SF
