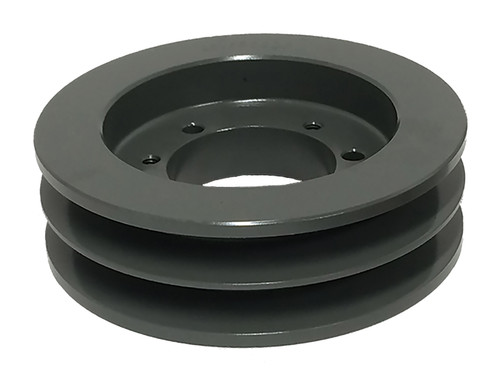

25V1400SF, V-Belt Pulley

25V1400SF

25V1400SF, V-Belt Pulley, Cast Iron

Learn more about 25V1400SF V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	25V1400SF
Type	D-3
Material	Cast Iron
Bore Type	QD
Bore Description	Bored for SF Bushing
Pitch Diameter (in)	13.900
Outside Diameter (in)	14.000
Face Width (in)	1.688
Min. Bore (in)	0.5
Unit System	Inch
Bushing	SF
MOQ	1
Sheave Type	5V
For Belt Type	5V
Weight (lb)	25.30
Part Number Cross Reference	QD2/5V14.00, 25V1400SF, 5V14.0-2-SF, 20180724, 2-5V14.00-SF SHEAVE, 5V1402, 2-5V14.00, 25V1400SF, 455261, 25V1400SF
Grooves	2
