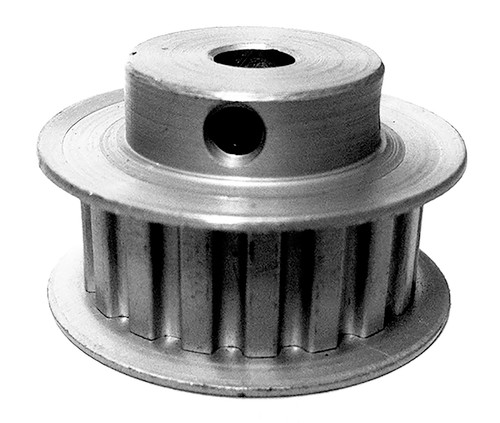

25XL037-6FA5, Timing Pulley

25XL037-6FA5

Click to Enlarge

25XL037-6FA5, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 25XL037-6FA5 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	25XL037-6FA5
Teeth	25
Tooth Style	XL
For Belt Width (in)	0.3750
Type	6F
Material	Aluminum
Finish	Clear Anodized
Flange Material	Aluminum
Bore Type	Finished Bore
Bore (in)	0.375
Bore Description	3/8 Inch Finished Bore
Pitch Diameter (in)	1.592
Outside Diameter (in)	1.572
Flange Diameter (in)	1.812
Face Width (in)	0.563
Overall Length (in)	0.906
Hub Diameter (in)	1.094
Min. Bore (in)	0.375
Pulley Belt Width (in)	0.430
Unit System	Inch
P.D. (mm)	40.00
O.D. (mm)	39.90
MOQ	1
Weight (lb)	0.14
Part Number Cross Reference	A 6A3-25DF03712, A6A3-25DF03712, 25XL037 X 3/8 6F, TP20A6W6-25, 25XL037-1A X 3/8, 25XL037-6FA5, 25XL037-6FA5
Set Screw Quantity	2
