26-2P06-6FA3 Powerhouse™ Pulleys

26-2P06-6FA3, A 6A51-026DF0608, 2MR-26S-06, 78426013, TP2A3W6-26

Product Details for 26-2P06-6FA3

Comparable to: 26-2P06-6FA3, A 6A51-026DF0608, 2MR-26S-06, 78426013, TP2A3W6-26

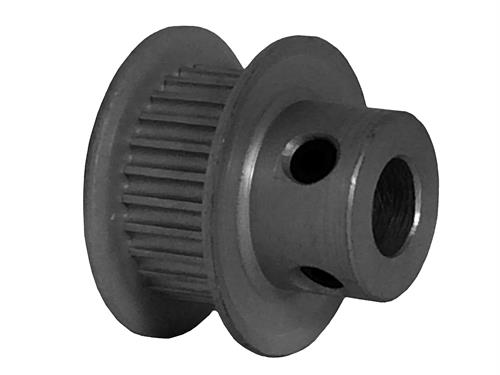

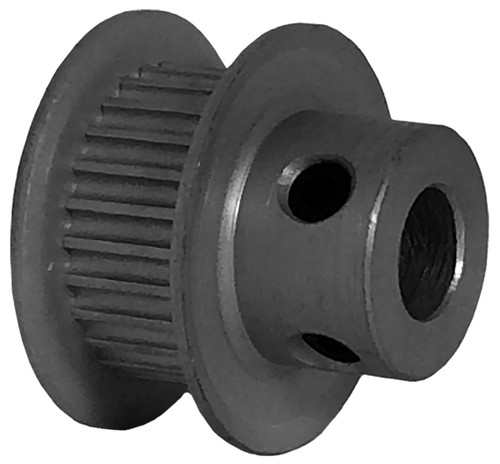

26-2P06-6FA3, Timing Pulley, Powerhouse, 1/4 Inch Bore, Aluminum

Specifications

Product Number 26-2P06-6FA3
Teeth 26
Tooth Style GT 2mm
For Belt Width (mm) 6.000
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 0.25
Pitch Diameter (in) 0.652
Outside Diameter (in) 0.632
Flange Diameter (in) 0.840
Face Width (in) 0.389
Overall Length (in) 0.687
Hub Diameter (in) 0.490
Set Screw 2 x 6-40 @ 90°
Min. Bore (in) 0.25
Pulley Belt Width (in) 0.290
Unit System Inch
Weight (lb) 0.02
List Price (1-9 Qty.) (USD) 9.17
Discount Price (10-24 Qty.) (USD) 8.71
Discount Price (25-49 Qty.) (USD) 7.1
Discount Price (50-99 Qty.) (USD) 5.73
Discount Price (100-249 Qty.) (USD) 5.04
Part Number Cross Reference 26-2P06-6FA3, A 6A51-026DF0608, 2MR-26S-06, 78426013, TP2A3W6-26

Documentation

Download Catalog 2015_BBMAN_CATALOG_123.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification 26-2P06-6FA3_REACH_cert
RoHS Certification 26-2P06-6FA3_RoHS_cert
