26-3M06-IA3 Powerhouse™ HTD® Pulleys

26-3M06-IA3, A 6D23-026DF0608

Product Details for 26-3M06-IA3

Comparable to: 26-3M06-IA3, A 6D23-026DF0608,

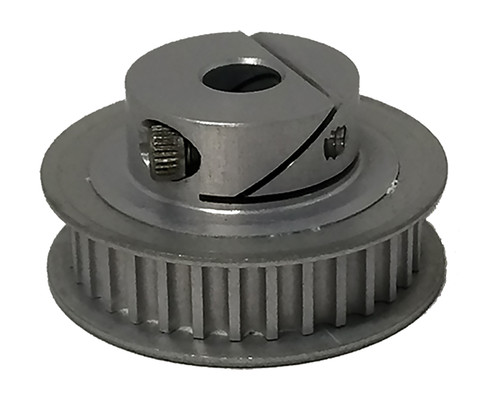

26-3M06-IA3, Timing Pulley, Powerhouse HTD, 1/4 Inch Bore, Aluminum, E-Z Lock Hub

Specifications

Product Number 26-3M06-IA3
Teeth 26
Tooth Style HTD 3mm
For Belt Width (mm) 6.000
Type 6FI
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 0.25
Pitch Diameter (in) 0.977
Outside Diameter (in) 0.947
Flange Diameter (in) 1.105
Face Width (in) 0.386
Overall Length (in) 0.688
Hub Diameter (in) 0.625
Unit System Inch
Number & Screw Size 1 x 2-56
Weight (lb) 0.04
List Price (1-9 Qty.) (USD) 14.9245
Discount Price (10-24 Qty.) (USD) 14.5318
Discount Price (25-49 Qty.) (USD) 12.027
Discount Price (50-99 Qty.) (USD) 8.64
Discount Price (100-249 Qty.) (USD) 7.668
Part Number Cross Reference 26-3M06-IA3, A 6D23-026DF0608,

Documentation

Download Catalog 2015_BBMAN_CATALOG_93.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification 26-3M06-IA3_REACH_cert
RoHS Certification 26-3M06-IA3_RoHS_cert
